Spatio-temporal variation of vapor pressure deficit and impact factors in the Yalung Zangbo River basin from 1981 to 2023

doi:10.12006/j.issn.1673-1719.2024.097

Abstract

Abstract:

Vapor pressure deficit (VPD) reflects the atmospheric water demand, and clarifying the spatial and temporal characteristics of VPD is helpful to understand the response of regional atmospheric dryness and wetness to climate change. Based on the data of monthly sunshine duration, average temperature (T_m), average maximum temperature, average minimum temperature, precipitation (P_r), relative humidity, vapour pressure (e) and wind speed of 34 meteorological stations in the Yalung Zangbo River basin (YZRB) from 1981 to 2023, the spatio-temporal characteristics and influencing factors of VPD in YZRB during recent 43 years were analyzed by linear trend estimate, R/S analysis, Mann-Kendall method, Morlet wavelet analysis and stepwise regression method. The results show that: (1) The annual and seasonal VPD in YZRB were generally lower in the east and west, and higher in the middle. The monthly variation showed a bimodal pattern, with the 1st and 2nd peaks in June and October, respectively, and the minimum in January. VPD was the largest in summer, followed by spring, and the smallest in winter. (2) The annual VPD increased significantly with a rate of 0.030 kPa/(10 a), mainly in summer and autumn, especially in the last 23 years (2001-2023). The annual and seasonal VPD mutation occurred in the mid-to-late 2000s, and the possibility of continuous increase in the future is very high. The annual and seasonal VPD were lower in the 1980s and 1990s, especially in the 1990s. In the 2000s, due to the higher VPD in summer and winter, the annual VPD was higher. Annual and seasonal VPD were higher in the 2010s, mainly in summer and autumn. VPD had a significant 3-4 a cycle in spring, summer and autumn, 2-3 a cycle in winter, and annual VPD had no significant cycle. (3) Seasonal/annual VPD had no significant linear relationship with geographical factors, but there was a very significant quadratic curve relationship between them. (4) The increase of annual and seasonal T_m was the dominant factor causing the increase of VPD. After 2004, the contribution of annual T_m and e to VPD decreased, and the role of P_r increased significantly.

Key words: Yalung Zangbo River basin (YZRB), Vapor pressure deficit (VPD), Linear trend, Inter-decadal change, Climate mutation, Cycle

DU Jun, GAO Jia-Jia, CHEN Tao, Tsewang , Pakgordolma . Spatio-temporal variation of vapor pressure deficit and impact factors in the Yalung Zangbo River basin from 1981 to 2023[J]. Climate Change Research, 2024, 20(5): 544-557.

Figures/Tables 14

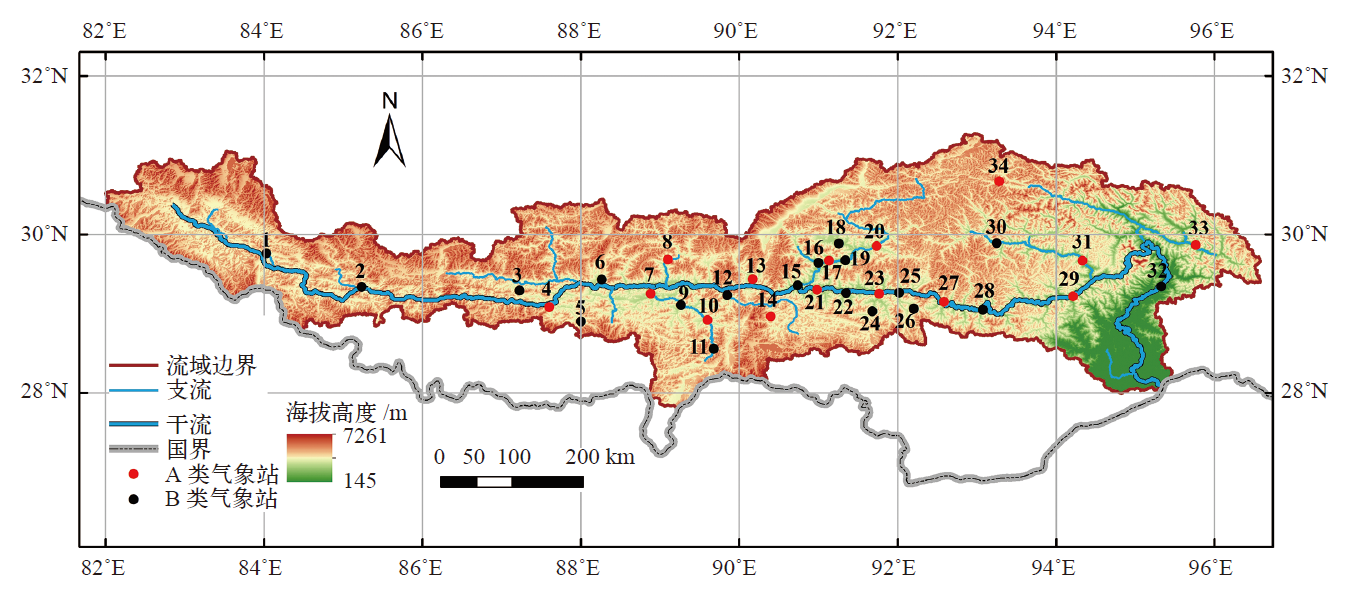

Fig. 1 Distribution of meteorological stations in the Yalung Zangbo River basin (YZRB)

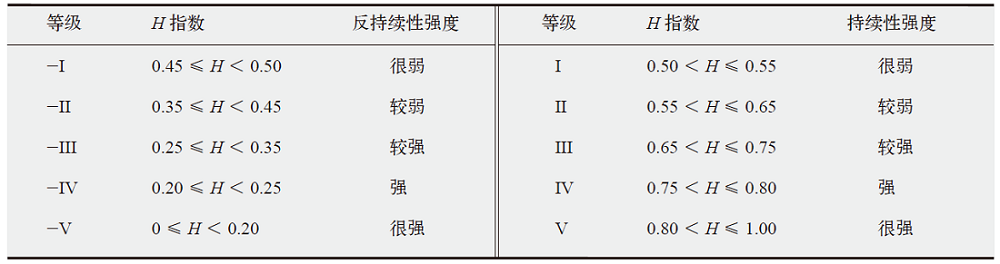

Table 1 H index classification

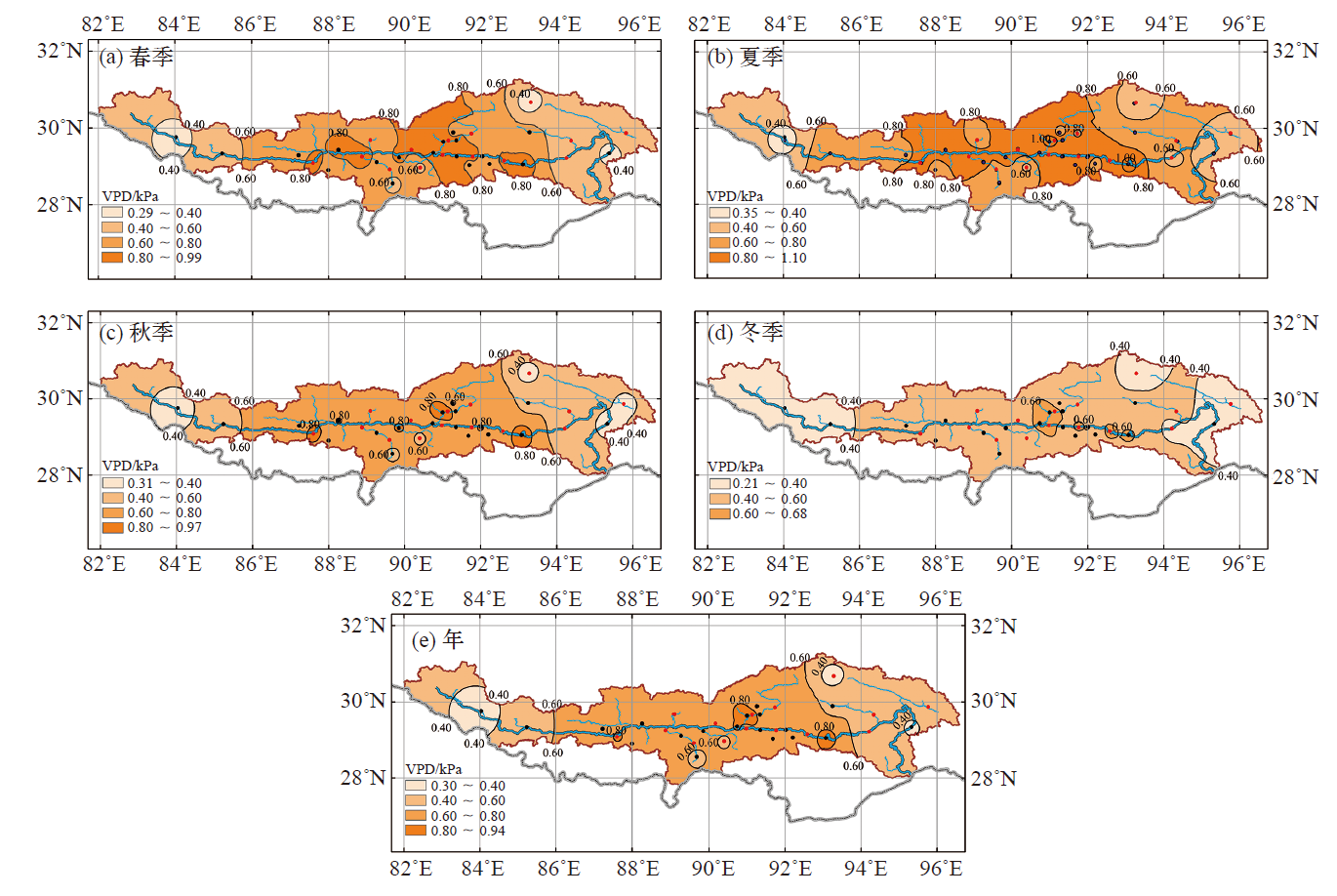

Fig. 2 Spatial distribution of perennial average value for annual and seasonal vapor pressure deficit (VPD) in YZRB

Fig. 3 Spatial distribution of linear trend (LTR) and its significance for annual and seasonal VPD at 15 stations in YZRB from 1981 to 2023

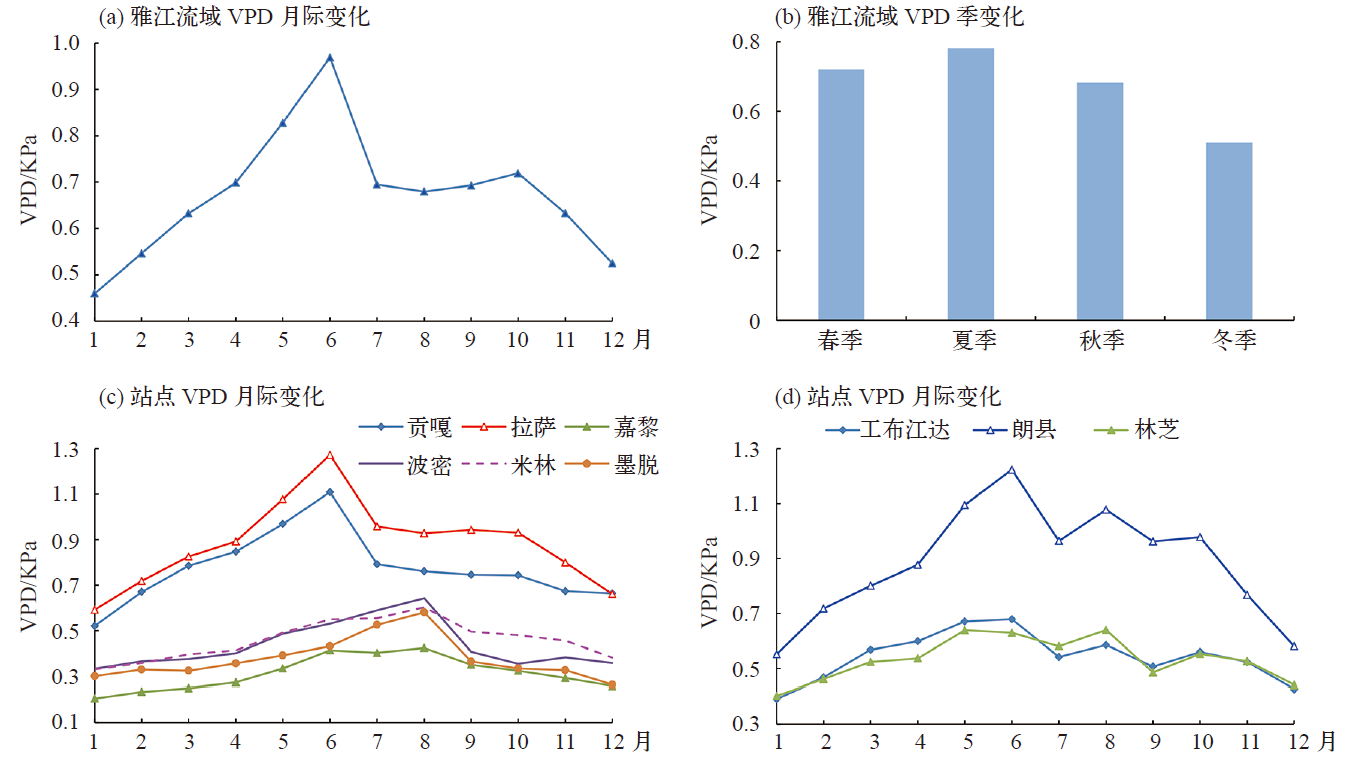

Fig. 4 Monthly and seasonal variations of VPD in YZRB

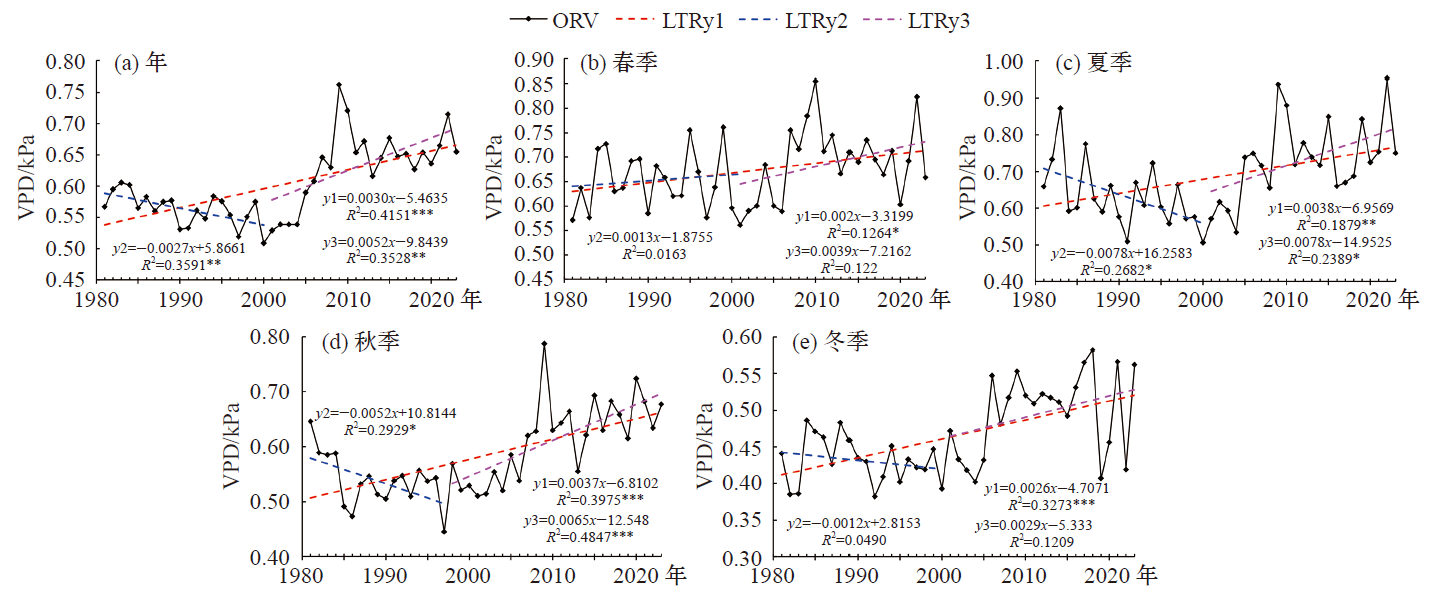

Fig. 5 Change of average annual and seasonal VPD in YZRB from 1981 to 2023

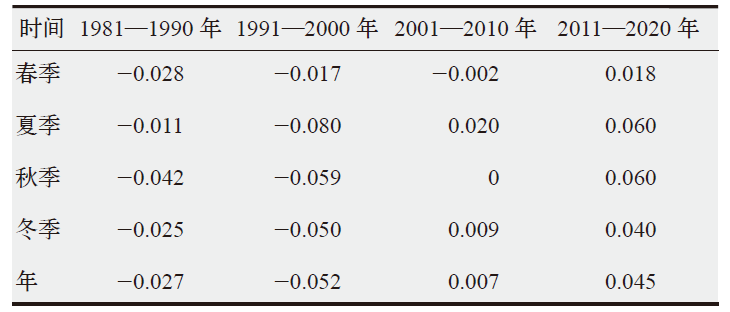

Table 2 The decadal anomaly of annual and seasonal VPD in YZRB from 1981 to 2020 kPa

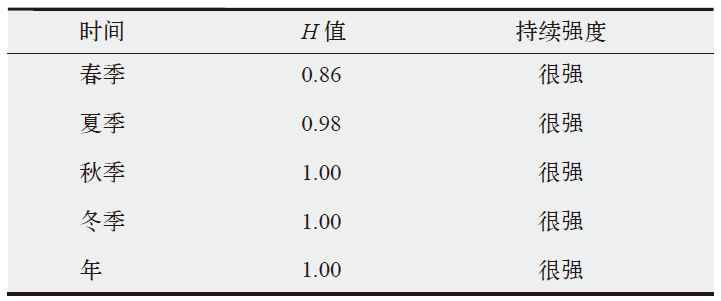

Table 3 H index of annual and seasonal VPD in YZRB from 1981 to 2023

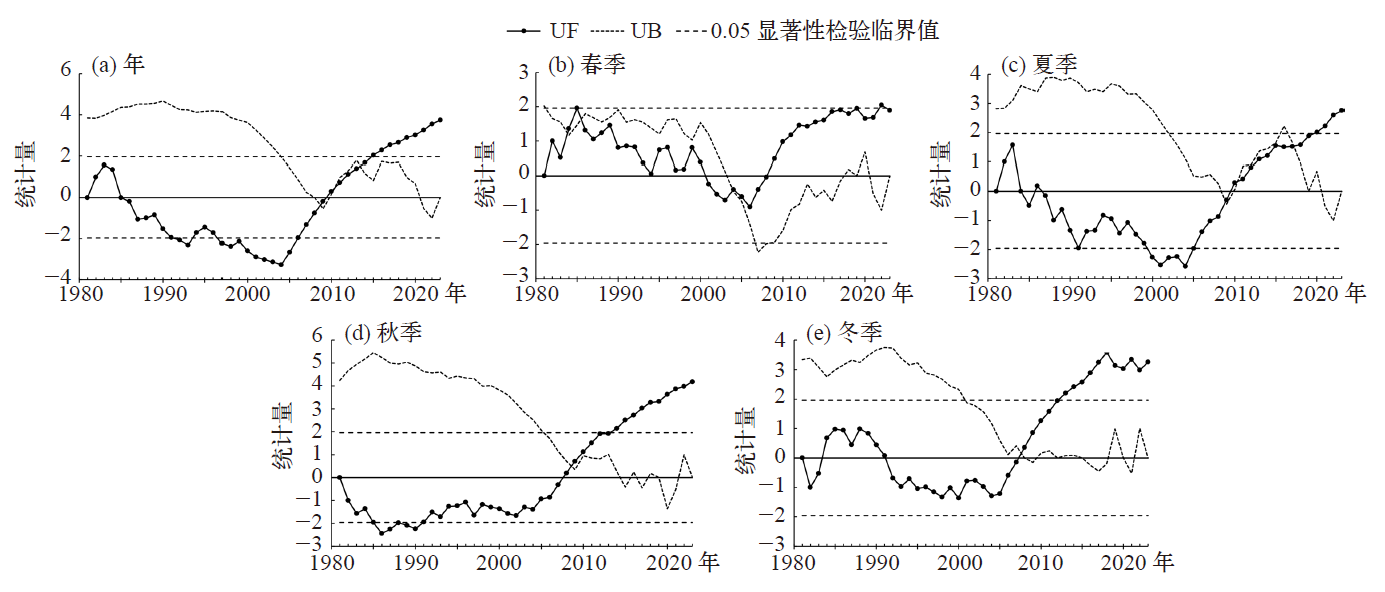

Fig. 6 The M-K test results of average annual and seasonal VPD in YZRB from 1981 to 2023

Fig. 7 Wavelet analysis of average annual and seasonal VPD in YZRB from 1981 to 2023 and the global wavelet power spectra

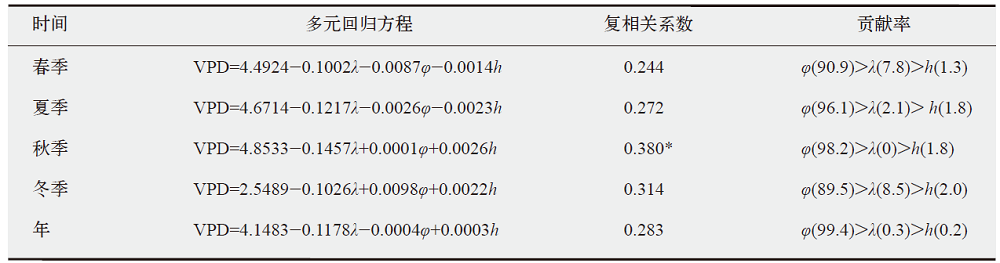

Table 4 Correlations and contribution rates of geographic factors to average annual and seasonal VPD in YZRB

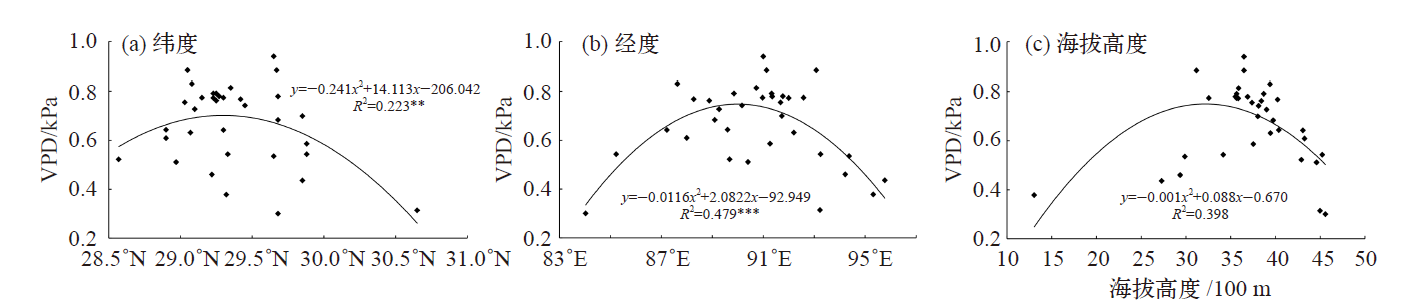

Fig. 8 The relationship between annual VPD and geographic factors in YZRB

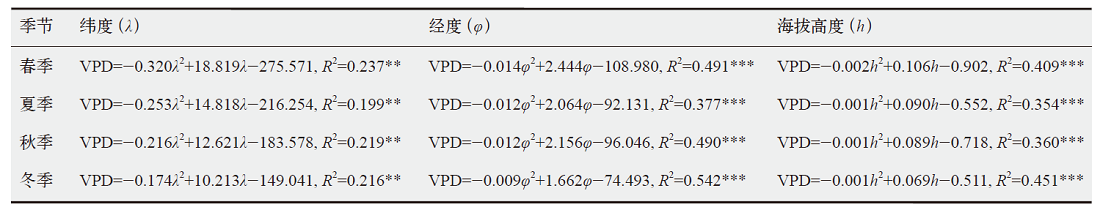

Table 5 Quadratic curve equation of seasonal VPD and geographic factors in YZRB

Table 6 Contribution rates of main meteorological factors to VPD in YZRB

References 56

[1]	Chiang F, Mazdiyasni O, AghaKouchak A. Amplified warming of droughts in southern United States in observations and model simulations[J]. Science Advances, 2018, 4 (8): eaat2380
[2]	Mao K B, Chen J M, Li Z L, et al. Global water vapor content decreases from 2003 to 2012: an analysis based on MODIS data[J]. Chinese Geographical Science, 2017, 27 (1): 1-7
[3]	Barkhordarian A, Bowman K W, Cressie N, et al. Emergent constraints on tropical atmospheric aridity-carbon feedbacks and the future of carbon sequestration[J]. Environmental Research Letters, 2021, 16: 114008
[4]	Ficklin D L, Novick K A. Historic and projected changes in vapor pressure deficit suggest a continental-scale drying of the United States atmosphere[J]. Journal of Geophysical Research: Atmospheres, 2017, 122: 2061-2079
[5]	程梦琦, 左志燕, 蔺邹兴, 等. 全球陆地饱和水汽压差的年代际突变[J]. 中国科学: 地球科学, 2023, 53 (7): 1536-1549.
	Cheng M Q, Zuo Z Y, Lin Z X, et al. The decadal abrupt change in the global land vapor pressure deficit[J]. Science China Earth Sciences, 2023, 66 (7): 1521-1534 (in Chinese)
[6]	Zhang H M, Wu B F, Yan N N, et al. An improved satellite-based approach for estimating vapor pressure deficit from MODIS data[J]. Journal of Geophysical Research: Atmospheres, 2015, 119 (21): 12256-12271
[7]	Dai A G. Increasing drought under global warming in observations and models[J]. Nature Climate Change, 2013, 3 (1): 52-58
[8]	Zhong Z Q, He B, Wang Y P, et al. Disentangling the effects of vapor pressure deficit on northern terrestrial vegetation productivity[J]. Science Advances, 2023, 9: eadf3166
[9]	He B, Chen C, Lin S R, et al. Worldwide impacts of atmospheric vapor pressure deficit on the interannual variability of terrestrial carbon sinks[J]. National Science Review, 2022, 9: eadf3166:1-9
[10]	郭仲英, 吴英楠, 刘晓英, 等. 不同冠层阻力模型对冬小麦返青-成熟期蒸散量估算的影响[J]. 中国农业气象, 2023, 44 (1): 1-12.
	Guo Z Y, Wu Y N, Liu X Y, et al. Effect of different canopy resistance models on estimation of winter wheat evapotranspiration during regreening-maturing stage[J]. Chinese Journal of Agrometeorology, 2023, 44 (1): 1-12 (in Chinese)
[11]	Yuan W P, Zheng Y, Piao S L, et al. Increased atmospheric vapor pressure deficit reduces global vegetation growth[J]. Science Advances, 2019, 5 (8): 1396-1407 doi: 10.1126/sciadv.aax1396 pmid: 31453338
[12]	桑玉强, 李龙, 施光耀, 等. 太行低山区荆条耗水特征及其与参考作物蒸散量的关系[J]. 中国农业气象, 2021, 42 (8): 657-665.
	Sang Y Q, Li L, Shi G Y, et al. Water consumption characteristics of Vitex Negundo in Hilly region of Taihang Mountains and its relationship to reference evapotranspiration[J]. Chinese Journal of Agrometeorology, 2021, 42 (8): 657-665 (in Chinese)
[13]	Zhang S, Tao F L, Zhang Z. Spatial and temporal changes in vapor pressure deficit and their impacts on crop yields in China during 1980-2008[J]. Journal of Meteorology Research, 2017, 31 (4): 800-808
[14]	Lobell D B, Hammer G L, McLean G, et al. The critical role of extreme heat for maize production in the United States[J]. Nature Climate Change, 2013, 3 (5): 497-501
[15]	赵富杰. 土壤水分和饱和水汽压差对中国地区玉米产量的影响及其预估[D]. 南京: 南京信息工程大学, 2023.
	Zhao F J. Effects of soil moisture and vapor pressure deficit on maize yield in China and its prediction[D]. Nanjing: Nanjing University of Information Science & Technology, 2023 (in Chinese)
[16]	Novick K A, Ficklin D L, Stoy P C, et al. The increasing importance of atmospheric demand for ecosystem water and carbon fluxes[J]. Nature Climate Change, 2016, 6 (11): 1023-1027
[17]	袁瑞瑞, 黄萧霖, 郝璐. 近40年中国饱和水汽压差时空变化及影响因素分析[J]. 气候与环境研究, 2021, 26 (4): 413-424.
	Yuan R R, Huang X L, Hao L. Spatio-temporal variation of vapor pressure deficit and impact factors in China in the past 40 years[J]. Climatic and Environmental Research, 2021, 26 (4): 413-424 (in Chinese)
[18]	宁梓妤, 徐宪立, 杨东, 等. 中国西南地区饱和水汽压差的年际变化及其影响因素[J]. 农业现代化研究, 2022, 43 (1): 172-179.
	Ning Z Y, Xu X L, Yang D, et al. Temporal variation of vapor pressure deficit and its influencing factors in Southwest China[J]. Research of Agricultural Modernization, 2022, 43 (1): 172-179 (in Chinese)
[19]	李素雲, 祁栋林, 温婷婷, 等. 1961—2020年青海省饱和水汽压差变化特征及影响因子分析[J]. 干旱区研究, 2023, 40 (2): 173-181. doi: 10.13866/j.azr.2023.02.02
	Li S Y, Qi D L, Wen T T, et al. The variation characteristics and influencing factors of vapor pressure deficit in Qinghai province from 1961 to 2020[J]. Arid Zone Research, 2023, 40 (2): 173-181 (in Chinese) doi: 10.13866/j.azr.2023.02.02
[20]	Matsoukas C, Benas N, Hatzianastassiou N, et al. Potential evaporation trends over land between 1983-2008: driven by radiative fluxes or vapour-pressure deficit?[J]. Atmospheric Chemistry and Physics, 2011, 11 (15): 7601-7616
[21]	Hao L, Huang X L, Qin M S, et al. Ecohydrological processes explain urban dry island effects in a wet region, southern China[J]. Water Resources Research, 2018, 54 (9): 6757-6771
[22]	陈斌, 李海东, 曹学章, 等. 基于SPOT-VGT NDVI的雅鲁藏布江流域植被动态变化[J]. 山地学报, 2016, 34 (2): 249-256.
	Chen B, Li H D, Cao X Z, et al. Dynamic changes in vegetation coverage in the Yarlung Zangbo River basin based on SPOT-VGT NDVI[J]. Journal of Mountain Research, 2016, 34 (2): 249-256 (in Chinese)
[23]	陈斌, 李海东, 曹学章, 等. 雅鲁藏布江流域植被格局与NDVI分布的空间响应[J]. 中国沙漠, 2015, 35 (1): 120-128. doi: 10.7522/j.issn.1000-694X.2014.00170
	Chen B, Li H D, Cao X Z, et al. Vegetation pattern and spatial distribution of NDVI in the Yarlung Zangbo River basin of China[J]. Journal of Desert Research, 2015, 35 (1): 120-128 (in Chinese) doi: 10.7522/j.issn.1000-694X.2014.00170
[24]	Li D, Li J, Zhang L L, et al. Variations in the key hydrological elements of the Yarlung Zangbo River basin[J]. Water Supply, 2019, 19 (4): 1088-1096
[25]	Xuan W D, Xu Y P, Fu Q, et al. Hydrological responses to climate change in Yarlung Zangbo River basin, Southwest China[J]. Journal of Hydrology, 2021, 597: 125761
[26]	包文, 段安民, 游庆龙, 等. 青藏高原气候变化及其对水资源影响的研究进展[J]. 气候变化研究进展, 2024, 20 (2): 1-9.
	Bao W, Duan A M, You Q L, et al. Research progress on climate change and its impact on water resources over the Tibetan Plateau[J]. Climate Change Research, 2024, 20 (2): 1-9 (in Chinese)
[27]	徐宗学, 班春广, 张瑞. 雅鲁藏布江流域径流演变规律与归因分析[J]. 水科学进展, 2022, 33 (4): 519-530.
	Xu Z X, Ban C G, Zhang R. Evolution laws and attribution analysis in the Yarlung Zangbo River basin[J]. Advances in Water Science, 2022, 33 (4): 519-530 (in Chinese)
[28]	赤曲, 周顺武, 多典洛珠, 等. 1961—2017年雅鲁藏布江河谷地区夏季气候暖干化趋势[J]. 气候与环境研究, 2020, 25 (3): 281-291.
	Chi Q, Zhou S W, Duodian L Z, et al. Warming and drying trend of summer climate along the Yarlung Zangbo River valley area from 1961 to 2017[J]. Climatic and Environmental Research, 2020, 25 (3): 281-291 (in Chinese)
[29]	刘浏, 牛乾坤, 衡静霞, 等. 雅鲁藏布江流域干湿转换特征及植被动态响应[J]. 农业工程学报, 2020, 36 (2): 175-184.
	Liu L, Niu Q K, Heng J X, et al. Characteristics of dry and wet conversion and dynamic vegetation response in Yarlung Zangbo River basin[J]. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36 (2): 175-184 (in Chinese)
[30]	杨浩, 崔春光, 王晓芳, 等. 气候变暖背景下雅鲁藏布江流域降水变化研究进展[J]. 暴雨灾害, 2019, 38 (6): 565-575.
	Yang H, Cui C G, Wang X F, et al. Research progresses of precipitation variation over the Yarlung Zangbo River basin under global climate warming[J]. Torrential Rain and Disasters, 2019, 38 (6): 565-575 (in Chinese)
[31]	张仪辉, 刘昌明, 梁康, 等. 雅鲁藏布江流域降水时空变化特征[J]. 地理学报, 2022, 77 (3): 603-618. doi: 10.11821/dlxb202203008
	Zhang Y H, Liu C M, Liang K, et al. Spatio-temporal variation of precipitation in the Yarlung Zangbo River basin[J]. Acta Geographica Sinica, 2022, 77 (3): 603-618 (in Chinese) doi: 10.11821/dlxb202203008
[32]	刘勇, 张文, 魏良帅. 雅鲁藏布江中游石冰川发育特征及潜在成灾机制分析[J]. 西北地质, 2024, 57 (1): 44-54.
	Liu Y, Zhang W, Wei L S. Developmental characteristics and potential disaster mechanism of rock glaciers in the middle reaches of the Yarlung Zangbo River[J]. Northwestern Geology, 2024, 57 (1): 44-54 (in Chinese)
[33]	萧峻琼, 郝洁, 鞠琴, 等. 雅鲁藏布江奴下站以上流域冰川融水变化[J]. 水文, 2021, 41 (6): 79-84.
	Xiao J Q, Hao J, Ju Q, et al. Changes of glacier meltwater volume in the basin above Nuxia station on the Yarlung Zangbo River[J]. Journal of China Hydrology, 2021, 41 (6): 79-84 (in Chinese)
[34]	王璐. 2000—2016年中国境内雅鲁藏布江流域冰川变化研究[D]. 西安: 西北大学, 2021.
	Wang L. Glacier Variations in the Yarlung Zangbo River basin in China from 2000 to 2016[D]. Xi’an: Northwest University, 2021 (in Chinese)
[35]	谭秋阳, 程磊, 徐宗学, 等. 1979—2017年雅鲁藏布江流域雪深时空分布特征及其影响因素分析[J]. 冰川冻土, 2021, 43 (4): 1049-1059. doi: 10.7522/j.issn.1000-0240.2021.0070
	Tan Q Y, Cheng L, Xu Z X, et al. Spatiotemporal distribution of snow cover depth and its driving factors in the Yarlung Zangbo River basin, 1979-2017[J]. Journal of Glaciology and Geocryology, 2021, 43 (4): 1049-1059 (in Chinese)
[36]	Li C H, Su F G, Yang D Q, et al. Spatiotemporal variation of snow cover over the Tibetan Plateau based on MODIS snow product, 2001-2014[J]. International Journal of Climatology, 2018, 38 (2): 708-728
[37]	Guo D L, Wang H J. Simulation of permafrost and seasonally frozen ground conditions on the Tibetan Plateau, 1981-2010[J]. Journal of Geophysical Research: Atmospheres, 2013, 118 (11): 5216-5230
[38]	杨大文, 王宇涵, 唐莉华, 等. 雅鲁藏布江上游径流变化及影响因素分析[J]. 水力发电学报, 2023, 42 (3): 41-49.
	Yang D W, Wang Y H, Tang L H, et al. Analysis of runoff changes and its causes under climate change in upper Yarlung Zangbo River basin[J]. Journal of Hydroelectric Engineering, 2023, 42 (3): 41-49 (in Chinese)
[39]	Grossiord C, Buckley T N, Cernusak L A, et al. Plant responses to rising vapor pressure deficit[J]. New Phytologist, 2020, 226 (6): 1550-1566 doi: 10.1111/nph.16485 pmid: 32064613
[40]	李得宴, 杨维芳, 高志钰, 等. 不同饱和水汽压模型对GNSS反演可降水量的影响分析[J]. 全球定位系统, 2020, 45 (6): 55-63.
	Li D Y, Yang W F, Gao Z Y, et al. Analysis of influence of different saturated water vapor pressure models on GNSS inversion precipitable water[J]. GNSS World of China, 2020, 45 (6): 55-63 (in Chinese)
[41]	魏凤英. 现代气候统计诊断与预测技术 (第2版)[M]. 北京: 气象出版社, 2007.
	Wei F Y. Statistics technology of diagnose and forecast of modern climate (2nd Ed)[M]. Beijing: China Meteorological Press, 2007 (in Chinese)
[42]	徐建华. 现代地理学中的数学方法[M]. 北京: 高等教育出版社, 2002.
	Xu J H. Mathematical methods in modern geography[M]. Beijing: Higher Education Press, 2002 (in Chinese)
[43]	刘慧媛, 邹磊, 邢万里. 1961—2018年海河流域极端降水时空演变特征[J]. 水电能源科学, 2021, 9 (12): 1-6.
	Liu H Y, Zou L, Xing W L. Temporal and spatial variation of extreme precipitation in Haihe River basin during 1961-2018[J]. Water Resources and Power, 2021, 9 (12): 1-6 (in Chinese)
[44]	林振山, 邓自旺. 子波气候诊断技术的研究[M]. 北京: 气象出版社, 1999.
	Lin Z S, Deng Z W. A study of sub-wave climate diagnostic techniques[M]. Beijing: China Meteorological Press, 1999 (in Chinese)
[45]	史继清, 豆永丽, 张歆平, 等. 西藏青稞生育期干旱强度变化特征分析[J]. 中国农业气象, 2023, 44 (9): 834-844.
	Shi J Q, Dou Y L, Zhang X P, et al. Analysis on change characteristics of drought intensity during the growth period of highland barley in Tibet[J]. Chinese Journal of Agrometeorology, 2023, 44 (9): 834-844 (in Chinese)
[46]	唐启义. DPS数据处理系统: 实验设计、统计分析及数据挖掘 (第2版)[M]. 北京: 科学出版社, 2010.
	Tang Q Y. DPS data processing system: experimental design, statistical analysis and data mining developed (Second edition)[M]. Beijing: Science Press, 2010 (in Chinese)
[47]	Irmak S, Kabenge I, Skaggs K E, et al. Trend and magnitude of changes in climate variables and reference evapotranspiration over 116-yr period in the Platte River basin, Central Nebraska-USA[J]. Journal of Hydrology, 2012, 420-421: 228-244
[48]	Hu Z M, Yu G R, Fu Y L, et al. Effects of vegetation control on ecosystem water use efficiency within and among four grassland ecosystems in China[J]. Global Change Biology, 2008, 14 (7): 1609-1619
[49]	Lu H B, Qin Z C, Lin S R, et al. Large influence of atmospheric vapor pressure deficit on ecosystem production efficiency[J]. Nature Communications, 2022, 13: 1653 doi: 10.1038/s41467-022-29009-w pmid: 35351892
[50]	杜军, 胡军, 刘依兰, 等. 近25年雅鲁藏布江中游蒸发皿蒸发量及其影响因素的变化[J]. 自然资源学报, 2008, 23 (1): 120-126.
	Du J, Hu J, Liu Y L, et al. Changes of pan evaporation and its impact factors in middle reaches of the Yarlung Zangbu River over Tibet in recent 25 year[J]. Journal of Natural Resources, 2008, 23 (1): 120-126 (in Chinese)
[51]	段娅楠, 季漩, 郭若愚, 等. 雅鲁藏布江流域潜在蒸散发的气候敏感性及其变化的主导因子分析[J]. 水土保持研究, 2020, 27 (2): 261-268.
	Duan Y N, Ji X, Guo R Y, et al. Analysis on the sensitivity and dominant meteorological factors identification of potential evapotranspiration variation in Yarlung Zangbo River basin[J]. Research of Soil and Water Conservation, 2020, 27 (2): 261-268 (in Chinese)
[52]	王大为, 赵成章, 方锋, 等. 石羊河流域水分利用效率及其对饱和水汽压差的响应[J]. 生态学报, 2023, 43 (8): 3090-3102.
	Wang D W, Zhao C Z, Fang F, et al. Spatial-temporal dynamics of water use efficiency and responding to vapor pressure deficit in Shiyang River basin, northwestern China[J]. Acta Ecologica Sinica, 2023, 43 (8): 3090-3102 (in Chinese)
[53]	张美玲, 鹿翠华, 陈连侠, 等. 1961—2010年鲁南地区参考作物蒸散量时空分异特征及气候归因[J]. 山西农业大学学报 (自然科学版), 2015, 35 (6): 582-589.
	Zhang M L, Lu C H, Chen L X, et al. Variation characteristics and climate explanation of spatial distribution and temporal variation of reference crop evapotranspiration in south of Shandong from 1961 to 2010[J]. Journal of Shanxi Agricultural University (Nature Science Edition), 2015, 35 (6): 582-589 (in Chinese)
[54]	党宏忠, 却晓娥, 冯金超, 等. 晋西黄土区苹果树边材液流速率对环境驱动的响应[J]. 应用生态学报, 2019, 30 (3): 823-831. doi: 10.13287/j.1001-9332.201903.015
	Dang H Z, Que X E, Feng J C, et al. Response of sap flow rate of apple trees to environmental factors in Loess Platea of western Shanxi province, China[J]. Chinese Journal of Applied Ecology, 2019, 30 (3): 823-831 (in Chinese)
[55]	韩磊, 何俊, 齐拓野, 等. 宁夏河东沙区侧柏冠层气孔导度对环境因子的响应及其模拟[J]. 生态学杂志, 2018, 37 (9): 2862-2868.
	Han L, He J, Qi T Y, et al. Responses and modeling of canopy stomatal conductance of Platycladus orientalis to environmental factors in Hedong sandy land, Ningxia[J]. Chinese Journal of Ecology, 2018, 37 (9): 2862-2868 (in Chinese)
[56]	Lian X, Piao S L, Chen A P, et al. Multifaceted characteristics of dryland aridity changes in a warming world[J]. Nature Reviews Earth & Environment, 2021, 2 (3): 232-250
