基于CMIP6和MaxEnt模型的江淮一季稻适生区分布预估

doi:10.12006/j.issn.1673-1719.2025.056

摘要/Abstract

摘要： 基于CMIP6气候模式数据和MaxEnt模型，耦合土壤、地形及人类活动等多维环境因子，系统评估了江淮一季稻在气候基准期（1985—2014年）与未来（2026—2100年）不同情景下适生区演变。结果表明：(1)通过共线性检验结合刀切法的“双指标”机制，从14个潜在环境因子中优选出9个主导因子，其累计贡献率达94.4%。模型验证表明，优化后的MaxEnt模型预测精度显著提升（AUC=0.923)。(2)未来江淮一季稻全生育期平均气温呈现显著上升趋势，其中SSP5-8.5情景下的升温速率最大（0.50℃/(10 a))；降水量总体呈增加趋势，江淮地区中北部降水增加趋势高于南部。(3)气候基准期高适生区集中在长江三角洲和沿江平原，占总面积的21.7%，其典型特征为水稻土占比高且水热条件优越；中适生区集中分布在淮河以南平原区，占26.2%；低适生区分布在淮北平原，占35.1%；非适生区主要包括大别山区和皖南山区、西北部旱地及城市化区域，占17.1%。(4)在未来时期，适生区呈现“东缩北扩”趋势，至SSP5-8.5情景下的远期，高适生区面积减少3.8个百分点，低适生区面积增加6.6个百分点。该演变主要受气候变暖“双刃剑”效应驱动：一方面安徽北部（32°N以北）因≥10℃积温增加300~450℃·d、生育期延长12~18 d成为主要扩展区；另一方面江苏南部（32°N以南）受高温日数增至35~45 d的胁迫，特别是在水稻关键生育期（孕穗-抽穗期）遭遇极端高温的概率增加3~5倍，因而适生区显著退缩。建议通过耐高温品种选育和种植布局优化提升气候韧性，为区域农业适应性策略制定提供科学依据。

关键词: 江淮一季稻, 适生区, 气候变化预估, MaxEnt模型

Abstract:

Based on CMIP6 climate model data and the MaxEnt model, this study systematically evaluates the evolution of suitable cultivation areas for single-cropping rice in the Jianghuai region during the climatic baseline period (1985-2014) and the future (2026-2100) under different scenarios, by coupling environmental factors such as soil, topography, and human activities. The results are as follows. (1) Through the “dual-index” mechanism combining collinearity testing and Jackknife method, 9 dominant factors were screened from 14 potential environmental factors, with a cumulative contribution rate of 94.4%. Model validation shows that the prediction accuracy of the optimized MaxEnt model was significantly improved (AUC=0.923), which is superior to the prediction accuracy reported in similar studies (e.g., 0.85-0.90). (2) The mean temperature during the entire growth period of single-cropping rice in the Jianghuai region shows a significant upward trend in the future, with the maximum warming rate under the SSP5-8.5 scenario (0.50℃/(10 a)). Precipitation generally shows an increasing trend, which is higher in the central and northern Jianghuai region than that in the south. (3) During the climatic baseline period, high-suitability areas are concentrated in the Yangtze River Delta and along-river plains, accounting for 21.7% of the total area, characterized by high proportion of paddy soil and superior hydrothermal conditions; medium-suitability areas are mainly located in the plains south of the Huaihe river, accounting for 26.2%; low-suitability areas are distributed in the Huaibei plain, accounting for 35.1%; non-suitability areas include the Dabie mountains and southern Anhui mountains, northwestern drylands, and urbanized areas, accounting for 17.1%. (4) In the future, the suitable areas show a trend of “eastern contraction and northern expansion”. In future periods, under the SSP5-8.5 scenario, the area of high-suitability areas will decrease by 3.8 percentage points, and that of low-suitability areas will increase by 6.6 percentage points. This evolution is mainly driven by the “double-edged sword” effect of climate warming: on one hand, northern Anhui (north of 32°N) becomes the main expansion area due to the increase of ≥10℃ accumulated temperature by 300-450℃·d and the extension of the growth period by 12-18 days; on the other hand, southern Jiangsu (south of 32°N) shows significant contraction under the stress of increased high-temperature days to 35-45 days, especially the probability of extreme high temperature during the critical growth stages (booting-heading stage) of rice increases by a factor of 3-5. It is proposed to enhance climate resilience through the breeding heat-tolerant varieties and optimizing planting layouts, providing a scientific basis for formulating regional agricultural adaptation strategies.

Key words: Single-cropping rice in the Jianghuai region, Suitable habitat, Climate change projection, MaxEnt model

王胜, 陈健, 周宇, 孙佳丽, 翟振芳, 谢五三, 戴娟, 丁小俊, 吴蓉. 基于CMIP6和MaxEnt模型的江淮一季稻适生区分布预估[J]. 气候变化研究进展, 2025, 21(6): 766-776.

WANG Sheng, CHEN Jian, ZHOU Yu, SUN Jia-Li, ZHAI Zhen-Fang, XIE Wu-San, DAI Juan, DING Xiao-Jun, WU Rong. Projection of the suitable cultivation area for single-cropping rice in the Jianghuai region based on CMIP6 and MaxEnt model[J]. Climate Change Research, 2025, 21(6): 766-776.

图/表 9

图1 江淮一季稻种植区空间分布

Fig. 1 Potential distribution of single-cropping rice planting areas in the Jianghuai region

表1 CMIP6模式介绍

Table 1 CMIP6 climate models used in this study

表2 江淮一季稻种植分布的潜在影响因子

Table 2 Potential impact factors for the distribution of single-cropping rice planting in the Jianghuai region

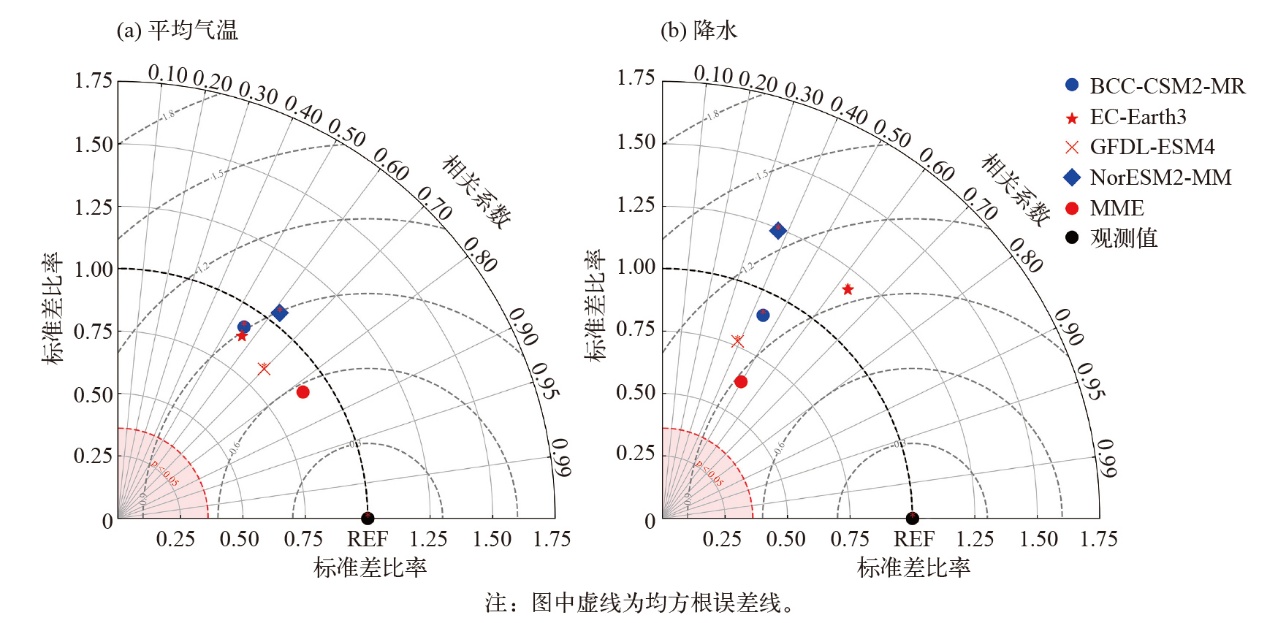

图2 泰勒图评估CMIP6模式模拟江淮地区4—9月平均气温(a)和降水(b)的能力注：图中虚线为均方根误差线。

Fig. 2 Taylor diagram of the mean temperature (a) and precipitation (b) during April-September simulated by CMIP6 climate models compared with observations

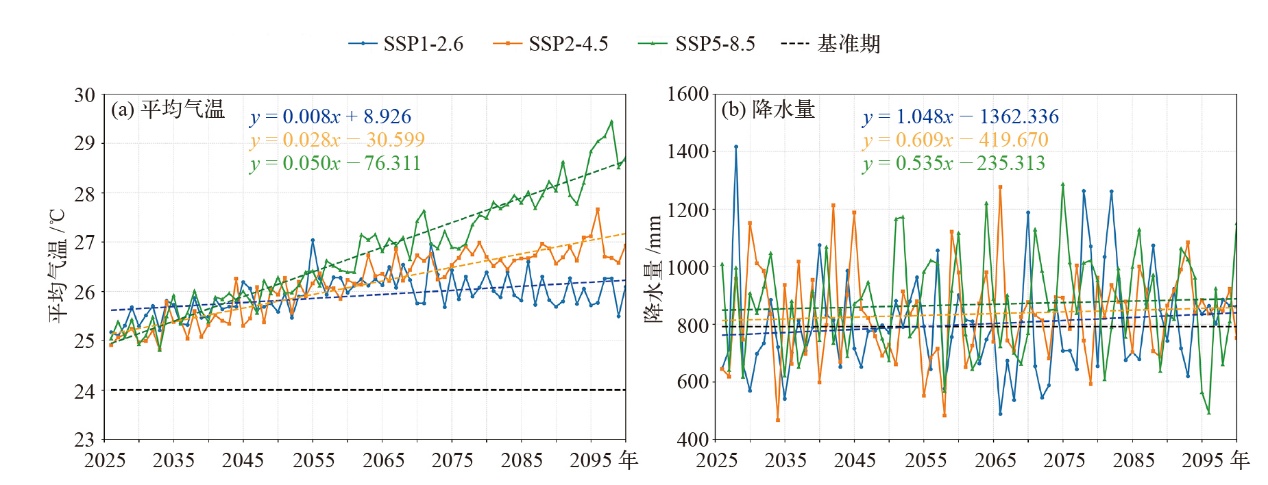

图3 2026—2100年不同情景一季稻全生育期平均气温(a)和降水量(b)变化预估

Fig. 3 Projected changes in mean temperature (a) and precipitation (b) during the entire growth period of single-cropping rice under different SSPs scenarios from 2026 to 2100

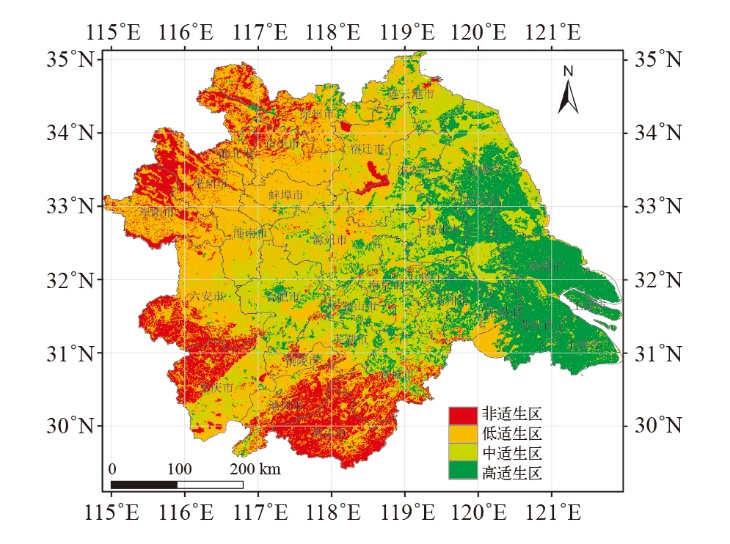

图4 气候基准期江淮一季稻种植潜在分布格局

Fig. 4 Potential distribution pattern of single-cropping rice planting in the Jianghuai region during the baseline period of model hindcasting

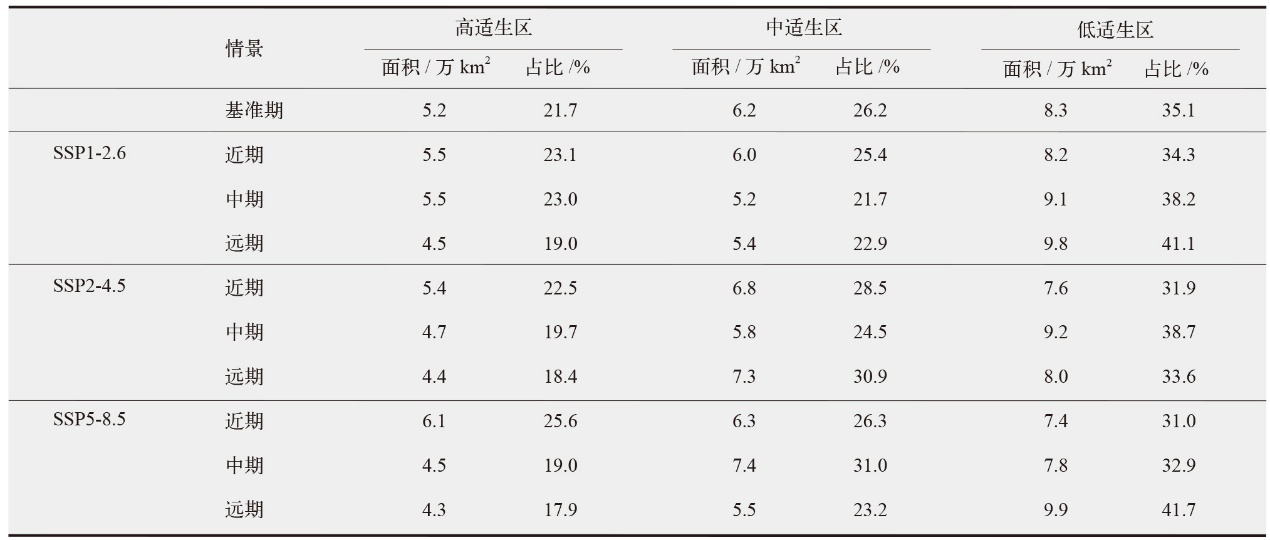

表3 基准期和未来情景下一季稻适生区面积占比

Table 3 Proportion of suitable area for single-cropping rice during the baseline period and future scenarios

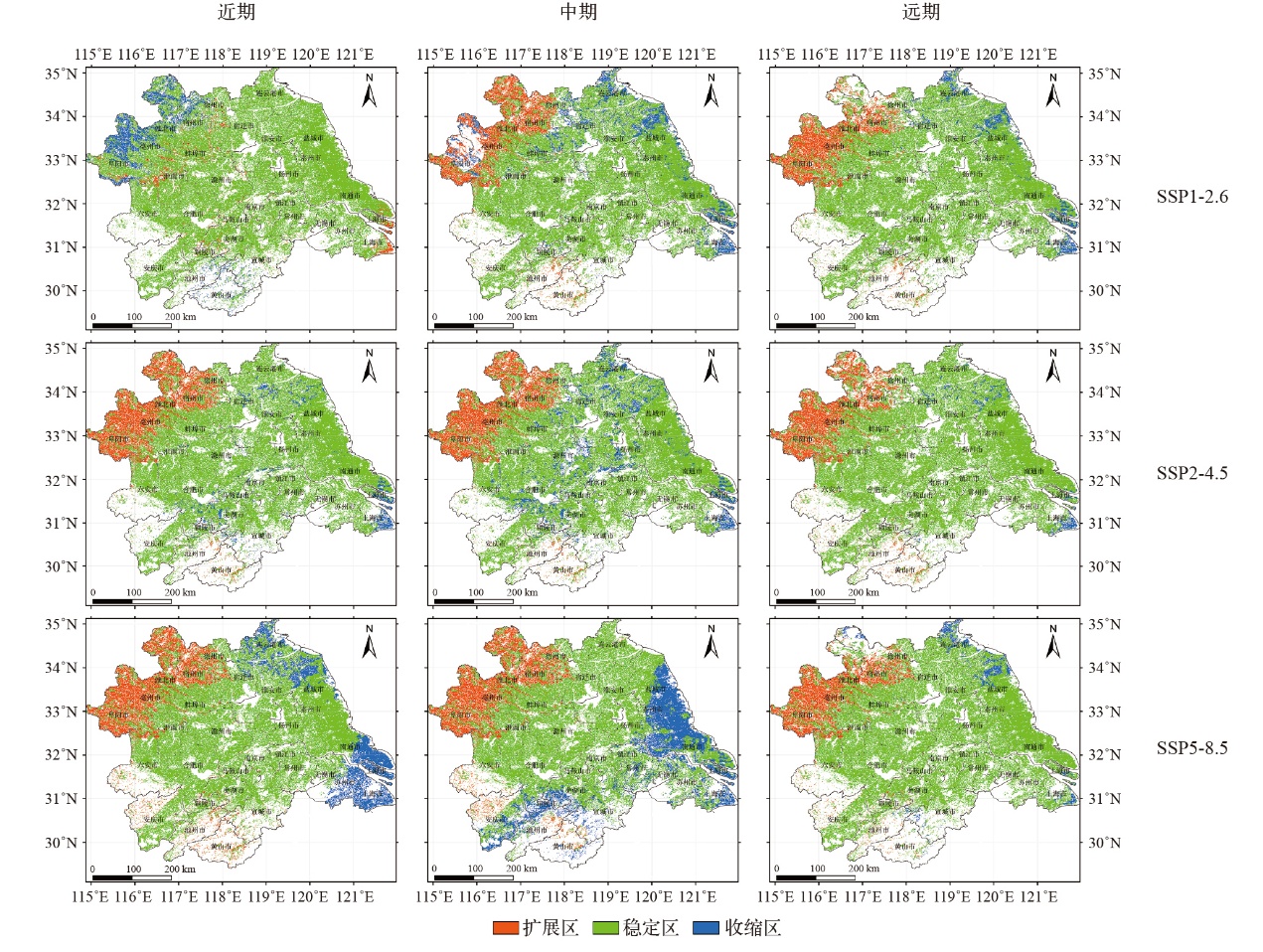

图5 不同SSP情景下江淮一季稻适生区变化

Fig. 5 Comparison of the potential spatial distribution pattern changes of single-cropping rice planting in 2026-2040, 2041-2070, and 2071-2100 relative to the baseline period

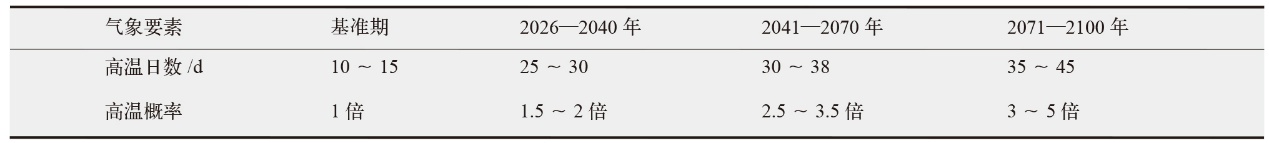

表4 SSP5-8.5情景下江苏南部（32°N以南）高温日数与极端高温概率变化

Table 4 Changes in high-temperature days and extreme temperature probability in southern Jiangsu (south of 32°N) under SSP5-8.5

参考文献 30

[1]	IPCC. Climate change 2021: the physical science basis[M]. Cambridge: Cambridge University Press, 2021
[2]	Sun X B, Tian Q, Long L, et al. Influence of temperature and sunlight on growth and yield of rice in different growth stages in Xuancheng area[J]. Chinese Agricultural Science Bulletin, 2016, 32 (27): 1-6
[3]	Lobell D, Schlenker W, Costa-Roberts J. Climate trends and global crop production since 1980[J]. Science, 2011, 333 (6042): 616-620 doi: 10.1126/science.1204531 pmid: 21551030
[4]	段居琦, 周广胜. 中国双季稻种植区的气候适宜性研究[J]. 中国农业科学, 2012, 45 (2): 218-227. doi: 10.3864/j.issn.0578-1752.2012.02.003
	Duan J Q, Zhou G S. Climatic suitability of double rice planting regions in China[J]. Scientia Agricultura Sinica, 2012, 45 (2): 218-227 (in Chinese)
[5]	马润佳. 我国作物主要种植区气候生产潜力及种植适宜性分析[D]. 南京: 南京信息工程大学, 2017.
	Ma R J. Climate potential and planting suitability analysis of major crop growing areas in China[D]. Nanjing: Nanjing University of Information Science and Technology, 2017 (in Chinese)
[6]	Zhang Y J, Wang Y F, Niu H S. Spatio-temporal variations in the areas suitable for the cultivation of rice and maize in China under future climate scenarios[J]. Science of the Total Environment, 2017 (601-602): 518-531
[7]	Phillips S J, Anderson R P, Schapire R E. Maximum entropy modeling of species geographic distributions[J]. Ecological Modelling, 2006, 190 (3-4): 231-259 doi: 10.1016/j.ecolmodel.2005.03.026 URL
[8]	吕彤, 郭倩, 丁永霞, 等. 基于MaxEnt模型预测未来气候变化情景下中国区域水稻潜在适生区的变化[J]. 中国农业气象, 2022, 43 (4): 262-275.
	Lv T, Guo Q, Ding Y X, et al. Predicting potential suitable planting area of rice in China under future climate change scenarios using the MaxEnt model[J]. Chinese Journal of Agrometeorology, 2022, 43 (4): 262-275 (in Chinese)
[9]	Liu B, Huang L, Jiang X, et al. Quantitative evaluation and mechanism analysis of soil chemical factors affecting rice yield in saline-sodic paddy field[J]. Agricultural Water Management, 2023, 289: 108523 doi: 10.1016/j.agwat.2023.108523 URL
[10]	王胜, 许红梅, 王德燕, 等. 基于CMIP5模式安徽省植被净初级生产力预估[J]. 气候变化研究进展, 2018, 14 (3): 266-274.
	Wang S, Xu H M, Wang D Y, et al. Projection of vegetation net primary productivity based on CMIP5 models in Anhui province[J]. Climate Change Research, 2018, 14 (3): 266-274 (in Chinese)
[11]	蒋文好, 陈活泼. CMIP6模式对亚洲中高纬区极端温度变化的模拟及预估[J]. 大气科学学报, 2021, 44 (4): 592-603.
	Jiang W H, Chen H P. Assessment and projection of changes in temperature extremes over the mid-high latitudes of Asia based on CMIP6 models[J]. Transactions of Atmospheric Sciences, 2021, 44 (4): 592-603 (in Chinese)
[12]	Liu L L, Xu H M, Wang Y, et al. Impacts of 1.5 and 2℃ global warming on water availability and extreme hydrological events in Yiluo and Beijiang River catchments in China[J]. Climatic Change, 2017, 145 (10): 1-14 doi: 10.1007/s10584-017-2067-0 URL
[13]	Zhang L, Zhu L, Li Y, et al. Maxent modelling predicts a shift in suitable habitats of a subtropical evergreen tree (Cyclobalanopsis glauca (Thunberg) Oersted) under climate change scenarios in China[J]. Forests, 2022, 13 (1): 126 doi: 10.3390/f13010126 URL
[14]	Zhu H, Jiang Z, Li L. Projection of climate extremes in China, an incremental exercise from CMIP5 to CMIP6[J]. Science Bulletin, 2021, 66: 2528-2537 doi: 10.1016/j.scib.2021.07.026 pmid: 36654212
[15]	Zhu H, Jiang Z, Li J, et al. Does CMIP6 inspire more confidence in simulating climate extremes over China?[J]. Advance in Atmospheric Sciences, 2020, 37 (10): 1119-1132
[16]	Zhang S B, Chen J. Uncertainty in projection of climate extremes: a comparison of CMIP5 and CMIP6[J]. Journal of Meteorological Research, 2021, 35 (4): 646-662 doi: 10.1007/s13351-021-1012-3
[17]	Kumar S, Stohlgren T J. Maxent modeling for predicting suitable habitat for threatened and endangered tree Canacomyrica monticola in New Caledonia[J]. Journal of Ecology & The Natural Environment, 2009, 1 (4): 94-98
[18]	Hempel S, Frieler K, Warszawski L, et al. A trend-preserving bias correction the ISI-MIP approach[J]. Earth System Dynamics, 2013, 4 (2): 219-236 doi: 10.5194/esd-4-219-2013 URL
[19]	Vetter V, Huang S, Aich V, et al. Multi-model climate impact assessment and intercomparison for three large-scale river basins on three continents[J]. Earth System Dynamics, 2014, 5 (2): 849-900
[20]	全国种植制度气候研究南方协作组. 我国南方稻区种植制度的气候区划[J]. 中国农业科学, 1982, 15 (4): 35-42.
	Associate Research Group for Agroclimatological Study of Cropping System in South China. Regionalization of cropping systems in rice growing regions in South China[J]. Scientia Agricultura Sinica, 1982, 15 (4): 35-42 (in Chinese)
[21]	中国水稻研究所. 中国水稻种植区划[M]. 杭州: 浙江科技出版社, 1989.
	China National Rice Research Institute. Rice cropping regionalization in China[M]. Hangzhou: Zhejiang Science and Technology Press, 1989 (in Chinese)
[22]	周广胜, 王玉辉. 全球生态学[M]. 北京: 气象出版社, 2003.
	Zhou G S, Wang Y H. Global ecology[M]. Beijing: China Meteorological Press, 2003 (in Chinese)
[23]	朱世峰, 王卫光, 丁一民, 等. 基于CMIP6的长江中下游未来水稻高温热害时空变化特征[J]. 农业工程学报, 2023, 39 (3): 113-122.
	Zhu S F, Wang W G, Ding Y M, et al. Spatiotemporal variation of future heat damage of rice in the middle and lower reaches of the Yangtze River using CMIP6 projections[J]. Transactions of the Chinese Society of Agricultural Engineering, 2023, 39 (3): 113-122 (in Chinese)
[24]	翁恩生, 周广胜. 用于全球变化研究的中国植物功能型划分[J]. 植物生态学报, 2005, 29 (1): 81-97. doi: 10.17521/cjpe.2005.0012
	Weng E S, Zhou G S. Defining plant functional types in China for global change studies[J]. Chinese Journal of Plant Ecology, 2005, 29 (1): 81-97 (in Chinese) doi: 10.17521/cjpe.2005.0012 URL
[25]	Kumar A, Kumar A, Adhikari D, et al. Ecological niche modeling for assessing potential distribution of Pterocarpus marsupium Roxb. in Ranchi, eastern India[J]. Ecological Research, 2020, 35 (6): 1095-1105 doi: 10.1111/1440-1703.12176
[26]	应邦肯, 田阔, 郭浩宇, 等. 基于MaxEnt模型预测未来气候变化情境下红树秋茄在中国潜在适生区的变化[J]. 生态学报, 2024, 44 (1): 224-234.
	Ying B K, Tian K, Guo H Y, et al. Predicting potential suitable habitats of Kandelia obovata in China under future climatic scenarios based on MaxEnt model[J]. Acta Ecologica Sinica, 2024, 44 (1): 224-234 (in Chinese)
[27]	Swets K A. Measuring the accuracy of diagnostic systems[J]. Science, 1988, 240 (4857): 1285-1293 doi: 10.1126/science.3287615 pmid: 3287615
[28]	Taylor K E. Summarizing multiple aspects of model performance in a single diagram[J]. Journal of Geophysical Research, 2001, 106 (7): 7183-7192 doi: 10.1029/2000JD900719 URL
[29]	张丽霞, 陈晓龙, 辛晓歌. CMIP6情景模式比较计划 (ScenarioMIP) 概况与评述[J]. 气候变化研究进展, 2019, 15 (5): 519-525.
	Zhang L X, Chen X L, Xin X G. Short commentary on CMIP6 Scenario Model Intercomparison Project (ScenarioMIP)[J]. Climate Change Research, 2019, 15 (5): 519-525 (in Chinese)
[30]	杨明鑫, 肖天贵, 李勇, 等. CMIP6模式对我国西南地区夏季气候变化的模拟和预估[J]. 高原气象, 2022, 41 (6): 1557-1571. doi: 10.7522/j.issn.1000-0534.2021.00119
	Yang M X, Xiao T G, Li Y, et al. Evaluation and projection of climate change in Southwest China using CMIP6 models[J]. Plateau Meteorology, 2022, 41 (6): 1557-1571 (in Chinese) doi: 10.7522/j.issn.1000-0534.2021.00119
